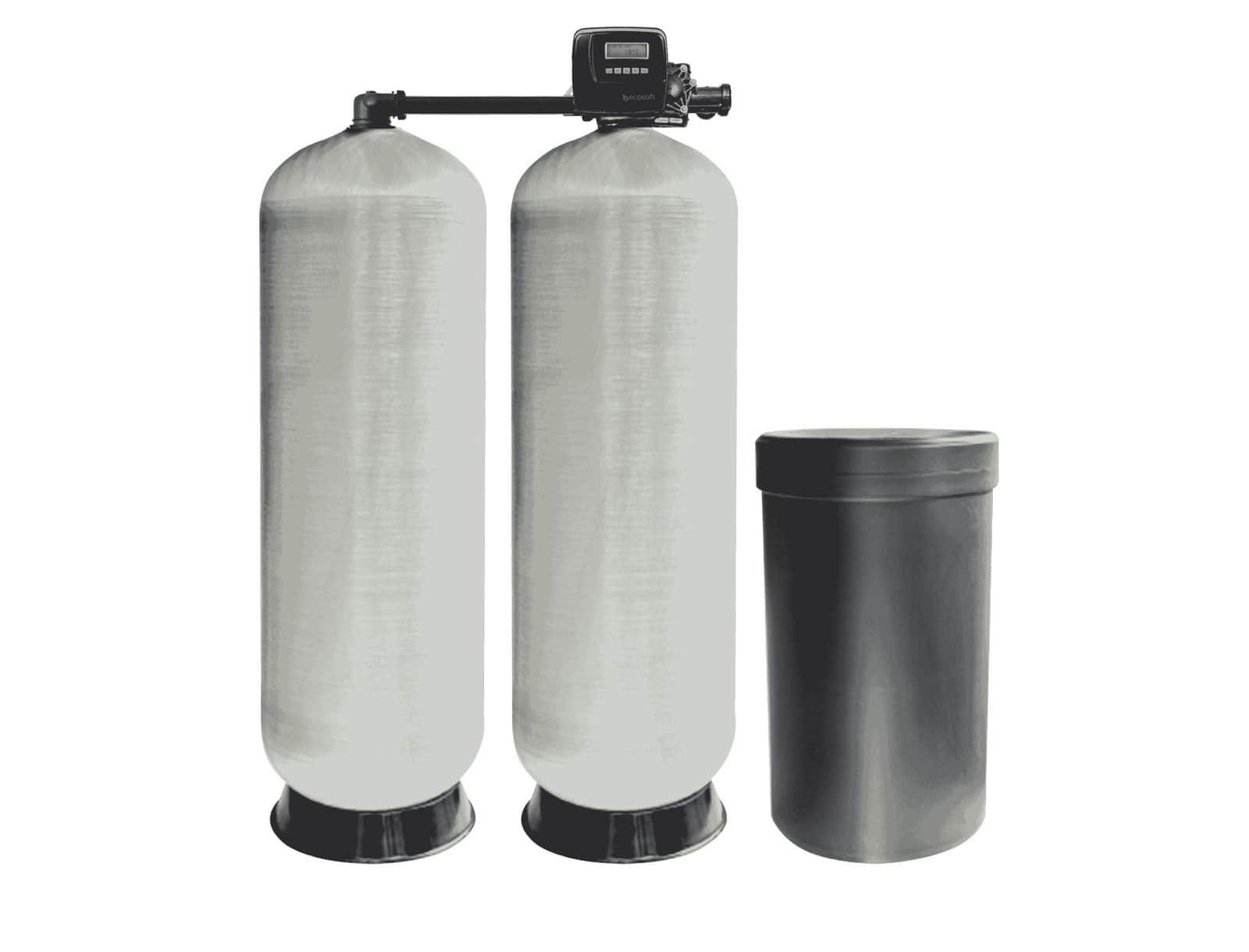

Dvigubas vandens minkštinimo komplektas (21×62) 1.25″ CLACK CE vožtuvas – 200 x 2 Litrai : UŽPILDAS – ECOMIX C

$ 98.26

Categories: ,
KEY FEATURESEnsures stable water quality with constant flowUser friendly installationDoesn`t create hydraulic shocksSIZE AND WEIGHTDimensions, H×W×D: 1830 x 2680 x 620 mmFilter weight 92 kgSPECIFICATIONSet of equipmentCE TWIN 1,25″ control valve 1‍Pressure tank 21×62, 4″ 2Brine tank 3           1 CE TWIN 1,25″ valve assembly (VTT1CEDME-03):CE TWIN 1,25″ control valveTop stack distributor, 14 segmentsConnection kit 1,25”Power supplyInjector, DLFC – for Ecomix and cation exchange resinFunnelValve instruction manual, instruction manual             2 Pressure tank assemblyPressure tank 21×62, 4″Adaptor 4” – 2,5”Riser DN 32 mmBottom stack distributor, 15 segments             3 Brine tank assenblyBrine tank 24×50, 378 LBrine well assembly (brine valve, overflow set)Brine gridTwin set may operate 2 units with alternativemode (the first unit in operation, the second -in regeneration or stand by) and can produce water during the day at constant flow rate.CE CONTROL VALVE KEY FEATURES‍Regeneration control by water volume: delayed regen, immediate, bothPossibility to change the cycle of regeneration stages and their range of timeMultilanguage menu: English, German, French, UkrainianDifferent setting modes are available:          – Twin or duplex configurations          – Up to 6 systems to the system controller          – 2 external devices simultaneously can be connectedSPECIFICATIONSWater flow rate*          – Service (pressure drop 1 bar) – 6,12 m3/h          – Backwash (pressure drop 1,7 bar) – 6,12 m3/hInlet, outlet – G 1″Drine – G 1″Brine line – G 3/8″Operating pressure – 2-6 barOperating temperature 4… 30 oCElectrical requirements – 230 V, 50 HzElectrical power – 30 W* Only for Clack WS1.25 CE control valves includes meter, bypass, and 1.25″ fitting kitRECOMMENDED MEDIA VOLUME FOR ONE CYLINDERPC002 Katijonų mainų derva – 200 LHCRS-S Katijonų mainų derva – 200 LEcomix A derva – 150 LEcomix C derva – 150 LThe volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.com.*** The amount of Ecomix can be increased by no more than 25 liters.ACCESSORIES**V3006 WS1 Bypass AssemblyV3009 WS1 Auxiliary Microswitch AssemblyV3191-01 WS1 Bypass Vertical Adapter Assy** Not included in the basic set. Can installed as additional equipment.DOWNLOADEcosoft media filters manualRF2162CE125 softener assy specifications
